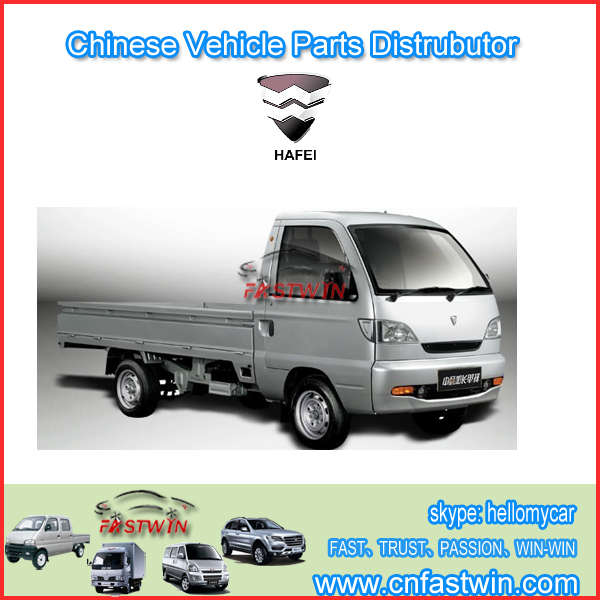

Hafei Ruiyi Truck Parts
CHINA HAFEI RUIYI HFJ1011G,ZHONGYI, MINYI MINI TRUCK
HAFEI ZHONGYI HFJ6371B, NEW ZHONGYI HFJ6376, XINYI , MINYI HFJ6370, NEW MINYI HFJ6390, HFJ6391, LUZUN,JUNYI)
| 序号 NO. | 名 称 DESCRIPTION | 件 号 PART NO. | 数量 QTY. |
| 1-1 | 上壳体（UPPER CASE） | BS10-2/D-1701012 | 1 |
| 1-2 | 下壳体（LOWER CASE） | BS10-2-1701011 | 1 |
| 2 | 定位套（ORIENTATION JACKET） | BS10-1700012 | 4 |
| 3 | 螺钉（SCREW） | BS10-1700201 | 4 |
| 4 | 螺钉（SCREW） | BS10-2-1700244 | 8 |
| 5 | 螺钉（SCREW） | 462-1700203 | 2 |
| 6 | 螺钉（SCREW） | BS10-1700214 | 2 |
| 7 | 前端盖总成（FRONT END COVER ASSY） | BS10-2-1701940 | 1 |
| 8 | 螺钉（SCREW） | BS10-1700208 | 8 |
| 9 | 检查孔胶盖 （RUBBER CAP,CHECK HOLE） | 462-1701004 | 1 |
| 10 | 倒车灯开关总成 （SWITCH ASSY,BACK UP LIGHT） | 465Q-1A/H-3729950 | 1 |
| 11 | 倒车灯开关胶圈 （RUBBER RING,BACK UP LIGHT） | 462-1700010 | 1 |
| 12 | 后机匣壳体总成（REAR CASE ASSY） | BS10-2-1701850 | 1 |
| 13 | 螺钉（SCREW） | BS10-1700202 | 3 |
| 14 | 拉线支架（CABLE BRACKET） | BS10-1700011 | 1 |
图四 变速器壳体–延伸壳体部分
FIG 4 TRANSMISSION SHELL-EXTEND SHELL
| 序号 NO. | 名 称 DESCRIPTION | 件 号 PART NO. | 数量 QTY. |
| 15 | 螺钉（SCREW） | BS10-2-1701208-A | 1 |
| 16 | 螺柱（BOLT） | BS10-1700203 | 1 |
| 17-1 | 螺母（NUT） | GB6170-86 M8 | 1 |
| 17-2 | 垫圈（WASHER） | GB97.1-85-8-140HV | 1 |
| 18 | 油封（OIL SEAL） | BS10-2200900-A | 1 |
| 19 | 螺堵（SCREW PLUG） | 462-1701206-A | 2 |
| 20 | 发动机吊耳（SHACKLE,ENGINE） | 468QL-1000122 | 1 |
| 21 | 胶堵（RUBBER PLUG） | BS10-1700013 | 1 |
| 22 | 曲轴位置传感器 （CRANKSHAFT POSITION SENSOR） | 465QA-3700800 | 1 |
| 23 | 螺钉总成（SCREW ASSY） | 462-1000801 | 1 |
| 24 | 螺柱（BOLT） | BS10-1700204 | 1 |
| 25 | 螺柱（BOLT） | BS10-1700205 | 1 |
| 序号 NO. | 名 称 DESCRIPTION | 件 号 PART NO. | 数量 QTY. |
| 1 | 换档壳体（SHIFT CASE） | BS10-2-1702014 | 1 |
| 2 | 圆柱滚子(COLUMN ROLLER) | 6×10Ⅲb GB4661 –84 | 1 |
| 3 | 螺桩(STUD BOLT) | BS10-1700212 | 1 |
| 4 | 螺钉(SCREW) | 462-1700203 | 3 |
| 5 | 换档手柄轴总成 (SHIFT CRANKER SHAFT ASSY.) | BS10-1702810 | 1 |
| 6 | 胶套(RUBBER BUSHING) | 462-1702015 | 1 |
| 7 | 换档臂轴总成 (SHIFT ARM SHAFT ASSY.) | 462-1702805 | 1 |
| 8 | 胶圈(RUBBER GASKET) | 462-1702020 | 1 |
| 9 | 胶帽(RUBBER GASKET) | BS10-1702022 | 1 |
| 10 | 换档摇臂总成 (SHIFTING ARM SHAFT ASSY.) | BS10-1702830 | 1 |
| 11 | 垫圈(SPRING) | 462-1000235 | 1 |
| 12 | 弹簧垫圈(SPRING WASHER) | GB93-87 8 | 1 |
| 13 | 螺母(NUT) | GB6170-86-M8 | 1 |
| 14 | 换档叉臂(SHIFTING FORK) | BS10-2-1702019 | 1 |
| 15 | 弹簧(SPRING) | 462-1702017 | 1 |
图三 变速器操纵部分
FIG 3 TRANSMISSION OPERATION DEVICE
| 序号 NO. | 名 称 DESCRIPTION | 件 号 PART NO. | 数量 QTY. |
| 16 | 垫圈（WASHER) | 462-1702203 | 1 |
| 17 | 限位档块（LIMITING STOPPER) | BS10-1-1702038 | 1 |
| 18 | 限位弹簧（LIMITING SPRING) | BS10-1-1702018 | 1 |
| 19 | 限位螺钉（LIMITING SCREW) | BS10-1-1702203 | 1 |
| 20 | 钢球（STEEL BALL) | 5/16″GB308 –84 | 1 |
| 21 | 弹簧（SPRING) | BS10-1702027 | 1 |
| 22 | 垫圈（WASHER) | BS10-1702202 | 1 |
| 23 | 水套螺堵（RUBBER GASKET) | 462-1002203 | 1 |
| 24 | 一、 二档拨叉 （FORK GEAR1 AND GEAR2） | BS10-1702013 | 1 |
| 25 | 三、四档拨叉 （FORK GEAR3 AND GEAR4） | BS10-1702011 | 1 |
| 26 | 倒档拨叉（REVERSE FORK） | BS10-1702034 | 1 |
| 27 | 一、二档拨叉轴 （SHAFT , GEAR1 AND GEAR2 FORK） | BS10-2-1702033 | 1 |
| 28 | 三、四档拨叉轴总成 （SHAFT ASSY., GEAR3 AND GEAR4 FORK） | BS10-2-1702800 | 1 |
| 29 | 倒、五档拨叉轴 （SHAFT., REVERSE AND GEAR5 FORK） | BS10-2-1702035 | 1 |
| 30 | 滚针（ROLLER） | BS10-1702032 | 1 |
图三 变速器操纵部分
FIG 3 TRANSMISSION OPERATION DEVICE
| 序号 NO. | 名 称 DESCRIPTION | 件 号 PART NO. | 数量 QTY. |
| 31 | 弹性销（SPRING COLUMN PIN） | GB879-86 5×24 | 3 |
| 32 | 弹簧（SPRING） | BS10-1702031 | 3 |
| 33 | 钢球（STEEL BALL） | GB308-77N3/8 | 5 |
| 34 | 通气阀门总成（BREATHER VALVE ASSY.） | 462-1701804 | 1 |
| 35 | 胶圈（RUBBER GASKET） | 462-1702016 | 1 |
| 36 | 里程表软轴夹钩 （ODOMETER FLEXIBLE SHAFT NIP CLASP） | 462-1700014-A | 1 |
| 37 | 挡板（BAFFLE） | BS10-2-1702041 | 1 |
| 38 | 螺栓（BOLT） | 462-1000812 | 2 |
| 1 | 一轴总成（1ST SHAFT ASSY） | BS10-2-1701810 | 1 |
| 2 | 滚针轴承（NEEDLE BEARING） | K202617 | 1 |
| 3 | 一轴轴承（BEARING,1ST SHAFT） | 63/28-2RSN/P63 | 1 |
| 4 | C形锁环（C TYPE LOCKING RING） | BS10-2-1701067 | 1 |
| 5 | 卡圈（CLIP） | BS10-2-1701207 | 1 |
| 6 | 油封（OIL SEAL） | BS10-1701930-A | 1 |
| 7 | 二轴（2ND SHAFT） | BS10-2-1701027-06 | 1 |
| 8 | 圆柱滚子（COLUMN ROLLER） | 3×5ⅢGB4661-84 | 3 |
| 9 | 止推垫圈（THRUST WASHER） | BS10-2-1701034 | 2 |
| 10 | 一档齿轮（GEAR,1ST） | BS10-2-1701044 | 1 |
| 11 | 衬套（BUSH） | BS10-2-1701065 | 1 |
| 12 | 滚针轴承（NEEDLE BEARING） | K354027 | 3 |
| 13 | 二档齿轮（GEAR,2ND） | BS10-2-1701046 | 1 |
| 14 | 三档齿轮（GEAR,3RD） | BS10-2-1701035 | 1 |
| 15 | 滚针轴承（NEEDLE BEARING） | K303527 | 1 |
FASTWIN HAFEI AUTO PARTS WEBSITE:
FASWIN HAFEI AUTO PART LABEL:
Each Parts will be labeled Fastwin design:
( Parts No.:+ Parts Name (Russian & Spanish & Arabic)+Qty + PI No.)
FASTWIN HAFEI AUTO PARTS PACKAGE
FASTWIN HAFEI AUTO PARTS WAREHOUSE:
FASTWIN HAFEI AUTO PARTS FAQ:
Q1: Which auto parts do Fastwin focus?
A1: We mainly deal Chinese brand vehicle as bellows:
Hafei & Chana & Dfsk & Saic Wuling & Chevrolet N200.N300 & Chery Karry
Chery & Geely & Lifan & Byd & Jac Veloce & Brilliance Auto
Great Wall & Havel & Zotye & Dadi & ZX Auto.
Jac & Dongfeng & Jmc & ,Foton & Yuejin
Q2: What is FASTWIN MOQ?
A2: Our MOQ is USD5,000 Per one order total amounts. For each item qty it is ok to 1pcs or any pcs.
Q3: What is FASTWIN payment terms?
A3: Air order: 100% T/T Advanced;
Sea order: We accept 30% T/T Advanced. 70% will be paid before shipping or L/C at sight
A4: How about the delivery time?
Q4: For air order: 7-10 days after receiving total amounts
For sea order: 25~30 days after received 30% advanced
Q5: Will U help us to supply cataes with price list
A5: As there are many car model with different cataes for chinese brand vehicles. All prices are fluctuated frequently, so please send us detail inquiry by excel list with english parts name & parts OEM number or car & parts pictures as you can supply.
Q6: What’s your warranty policy?
A6: 9 months warranty from the date of B/L.For long business.
We accept reasonable claim for aftermarket services!
Q7.: Which Markets are FASWIN Specially
A7.: We have good experience for Russian Markets, Middle-East Markets & Latin America and so on Q8: Can you sell chinese brand parts with original packing or car logo?
Q8: Can you sell chinese brand car parts with original packing or car logo?
A8: Sorry to tell U that we cann’t ! We prefer to deal business in a legal way based on Intellectual property rights & customs’ rules!
If U feel interest to order HAFEI ZHONGYI Car Spare Parts, HAFEI RUIYI Car Part, HAFEI MINYI Auto Parts, HAFEI LOBO Auto Spare Parts, HAFEI SAIMA Car Parts Wholesale, China HAFEI LUZUN Parts ,China HAFEI JUNYI Car Spare Parts, Spare Parts for HFJ1011G Car, HAFEI HFJ6371 HFJ6376 Body Parts, HAFEI XINYI Auto Parts Spare Parts for China HAFEI Car,HAFEI MINYI TRUCK PARTS and so on. Pls contact us!
